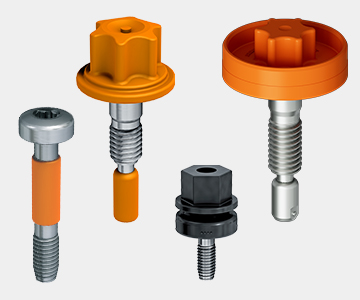

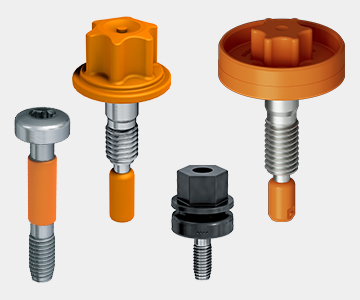

VOLTtec® Insulated Fasteners

毅结特的绝缘紧固件结合了生产可靠冷成型紧固件的成熟工艺技术与全自动且100%电测试的注塑工艺。因此，我们不仅在紧固方面，而且在绝缘功能方面，都为客户提供最佳的连接设计支持。

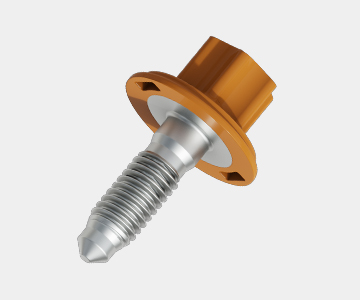

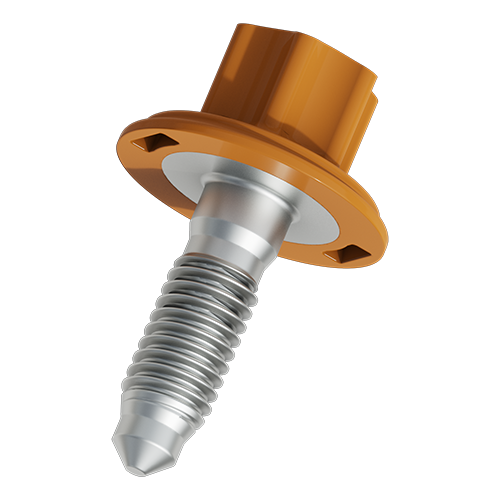

VOLTtec^® Standard fastening element for insulated high-voltage connections in electrified vehicles and stationary battery energy storage systems. The insulated screws ensure secure contact, even under the influence of vibration and temperature.

Advantages

• Available from stock / Short time to market
• No additional invest in tooling and automation
• 100 % safe - dielectric strength test in production line
• Relaxation-free connection due to steel under head geometry

Technical Specifications

• Thread M6 - 6h
• Drive TORX^® E12
• Transmittable torque min. 12 Nm
• Tracking Resistance CTI 500V / 600 V
• Flammability HB / V0 according UL 94

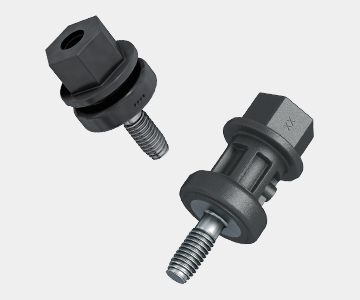

The VOLTtec^® PCB Spacer is available in two different heights.
In electrical and electronic components, printed circuit boards must be stacked due to space constraints. The VOLTtec^® PCB Spacer ensures simple and uncomplicated assembly as well as sufficient distance between the components, to prevent destructive sparking or arcing. For this purpose, insulation material is used that meet the required dielectric strength.

Advantages

• Available from stock – Short time to market
• No additional investment in tooling and automation
• 100 % dielectric strength test with 4 kV
• Self-tapping direct fastening in Aluminum and Plastic

Technical specifications

• Thread ALtracs^® Plus 30 / Drive SW7
• Distance 10mm and 15mm
• Screw boss for self-tapping screw EVO PT^® 30

More Than a Product – Integrated Engineering Support for Insulated Screws

In addition to a comprehensive standard portfolio, EJOT offers:

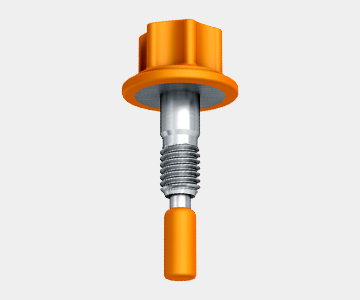

• Custom‑designed screws and plastic components
• Early design and safety evaluations
• Engineering support using CAD, FEM and Moldex
• Individual support in APPLITEC  testing labs
• Integrated metal and plastic manufacturing under one roof
• Scalable, quality‑controlled serial production
