MAXXtip®

IND-Produktbilder-MAXXtip

Specification

  • 概述

    工艺可靠的直接紧固件:

    • 超高强度钢
    • 铸铁

    对氢脆性完全不敏感 - 即使有电镀涂层 可拆卸接头


CAD & more on ejot.com

With the one-time registration we provide in this area CAD data in various formats as well as PDFs of the technical drawings of our products DELTA PT®, SHEETtracs® and ALtracs® Plus.
Additionally, CAD & more offers you the possibility to design your individual joints with the aid of prognosis programs or to check their feasibility by APPLICATION CHECKs. Furthermore, you can download the latest product brochures, technical publications and the EJOT company standards.


CAD & more

Thread forming solution for (ultra) high strength materials

EJOT

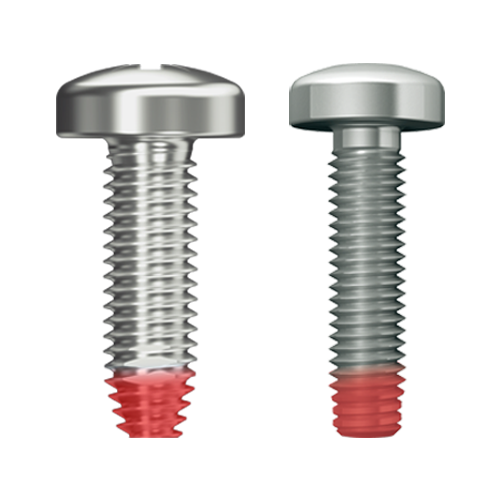

MAXXtip®将碳奥氏体回火螺杆与超硬螺钉尖端相结合。这种独特的组合为直接紧固到（超）高强度材料中提供了全新的选择

由于承载区域采用碳奥氏体回火组织（强度与10.9级相当），MAXXtip®螺钉对氢脆性不敏感。因此，无需回火即可在电镀表面应用，从而在成型区域使螺纹侧面硬度至少达到750 HV*。

*若为锌片表面，烘烤会导致成型区域的螺纹牙侧硬度降低至少600 HV。

Main application fields of EJOT MAXXtip®

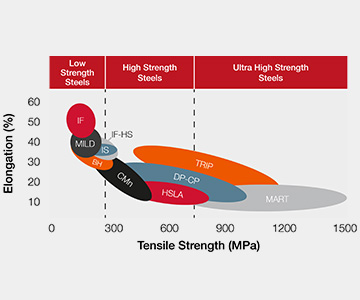

使用螺纹类型的（超）高强度钢板（抗拉强度至少为1200 MPa

  • SHEETtracs® 精度高达2毫米
  •  螺旋形式（Spiralform®）类似于DIN 7500标准

使用Spiralform®螺纹类型的铸铁（GJS和GJL)
