驱动与头部形式

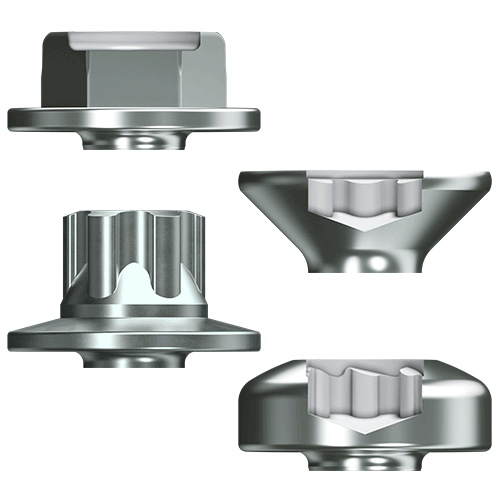

IND-Produktbilder-Antriebe-Koepfe-1-EJOT

Specification

  • Overview

    毅结特可实现的螺钉驱动槽与头部几何设计概览

Hotline

Applications Engineer


CAD & more on ejot.com

With the one-time registration we provide in this area CAD data in various formats as well as PDFs of the technical drawings of our products DELTA PT®, SHEETtracs® and ALtracs® Plus.
Additionally, CAD & more offers you the possibility to design your individual joints with the aid of prognosis programs or to check their feasibility by APPLICATION CHECKs. Furthermore, you can download the latest product brochures, technical publications and the EJOT company standards.


CAD & more

毅结特驱动系统

1. Z Cross recess Pozidriv
2. Z Combi cross recess Pozidriv
3. H Cross recess Phillips
4. H Combi cross recess Phillips
5. C Cross recess Camera cross recess according to JCIS
6. Combi TORX®
7. TORX®
8. Tamper Resistant TORX®
9. TORX PLUS®
10. Tamper Resistant TORX PLUS®
11. Three star
12. Hexagon socket
13. Hexagon
14. One way
External TORX® (not pictured)
TORX® PARALOBETM (not illustrated)

毅结特螺钉头型

1.十字槽盘头 Z (or H)
2.盘头型 带有 TORX PLUS®/AUTOSERT
3.圆垫片头型 带有 TORX PLUS®/AUTOSERT
4.外六角垫片头型
5.外六角法兰头型
6.圆垫片头型带有十字槽 Z (or H)
7.平沉头带有 TORX PLUS®/AUTOSERT
8. 沉头带有十字槽 Z (or H)
9.圆沉头带有 TORX PLUS®/AUTOSERT

external-TORX with small flange (not illustrated)
external-TORX with large flange (not illustrated)
